Upgrade to 32-bit control board Runs faster, runs smoother, and remains stable even when the machine is running fast
--Double y-axis, all-round use
--Integrated 3pcs A4988 drivers, directly connect to four wire stepper motor.
--Support Laser or Spindle.
--Support 12V, 5V with TTL and without TTL laser.
--Adjustable driver subdivision.（only 4.0 version）
--Support the x/y/z limit switch, probe interface.
--Support external Offline Controller(Optional).
--A4988 can be replaced with 8825 driver.
--Support X,Y,Z limit switch

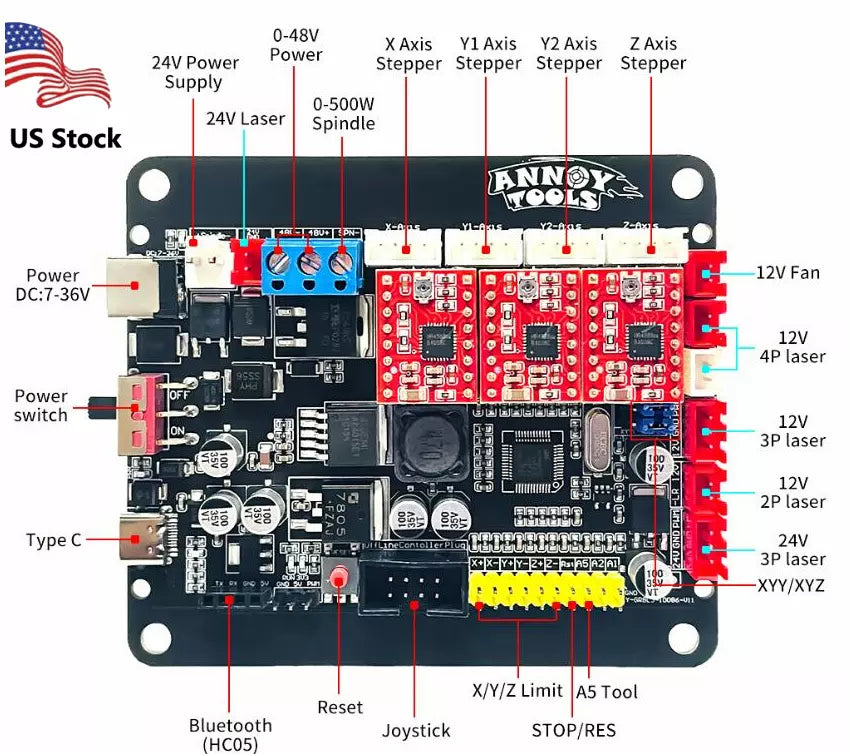

Nano 3Axis Control Board is a Arduino Nano based 3 Axises Motion control system, can be used
for Laser Engraving machine, Drawer Machine, CNC Engraving Machine etc.
New chip upgrade, using 32-bit chip
1*Controller
1*USB cable
1*775 motor line
PS: Please leave the email box I will send software to you .
3axis 4.0V
1. support XYZ axis, double Yaxis
2. install GRBL 1.1 firmware
3. Support XYZ limit
4. Support 2pin/3pin/4pin laser(all the tpye laser in Martket)
5. Can work of Offline controller
6. Support Bluetooth
7. Stepping subdivision
8. Can use Probe
9. Support connect servo(writting)
10. Support voltage: 0-48v (300W/400W/500w spindle)
